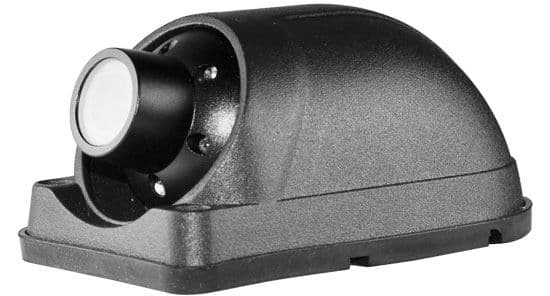

C-KO-CAM-C-404 1 / 3” COLOR CCD SENSOR SPECIFICATIONS Image Device: SHARP TV System: PAL/ NTSC Effective Pixels: 512 x 582 pixels / 512 x 492 pixels Sensing Area: 4.9mm x 3.7mm Scanning System: 2:1Interlace Sync. System: Internal Resolution: 420TV lines Horizontal Sync. Frequency: 15.625KHz / 15.734KHz Vertical Sync. Frequency: 50Hz / 60Hz Minimum Illumination: 0Lux (Infrared lamps on) 0 .1Lux(day) / F1.2 Video Output: 1.0vp-p, 75Ohm Gamma Consumption: 0.45 AGC: Auto S/N Ratio: Better than 48dB White Balance: Auto Electronic Shutter: 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds BLC: Auto Current Consumption: Max. 150mA Power Supply: DC12V Operating Temperature: -20°C~70°C , RH95% MAX Storage Temperature: -40°C~80°C,RH95% MAX Lens: 2.8mm, 3.6mm Optional Lens Angle: 120°
