Ford Ranger Raptor (2023+) grille kit triple-r 16

  • Ford Ranger Raptor (2023+) grille kit triple-r 16
  • Ford Ranger Raptor (2023+) grille kit triple-r 16
  • Ford Ranger Raptor (2023+) grille kit triple-r 16
  • Ford Ranger Raptor (2023+) grille kit triple-r 16
  • Ford Ranger Raptor (2023+) grille kit triple-r 16

Ford Ranger Raptor (2023+) grille kit triple-r 16

Bespoke vehicle integration kit for Lazer LED lightbar installation

Custom fit for Ford Ranger Raptor (2023+)

Compatible with Triple-R 16 Elite LED lightbar

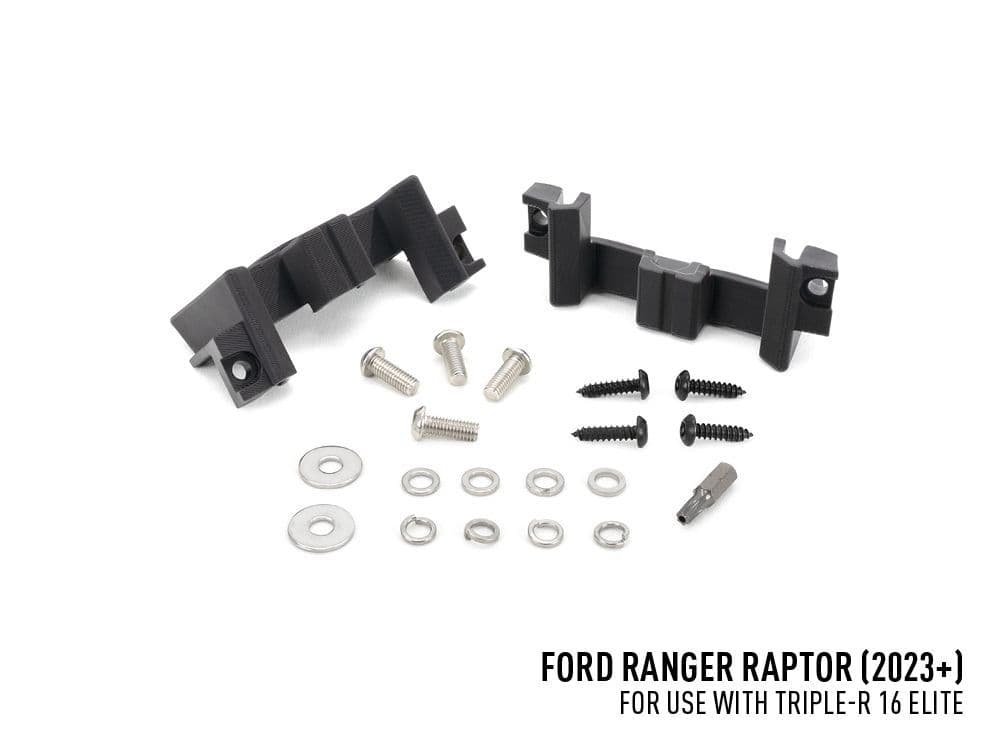

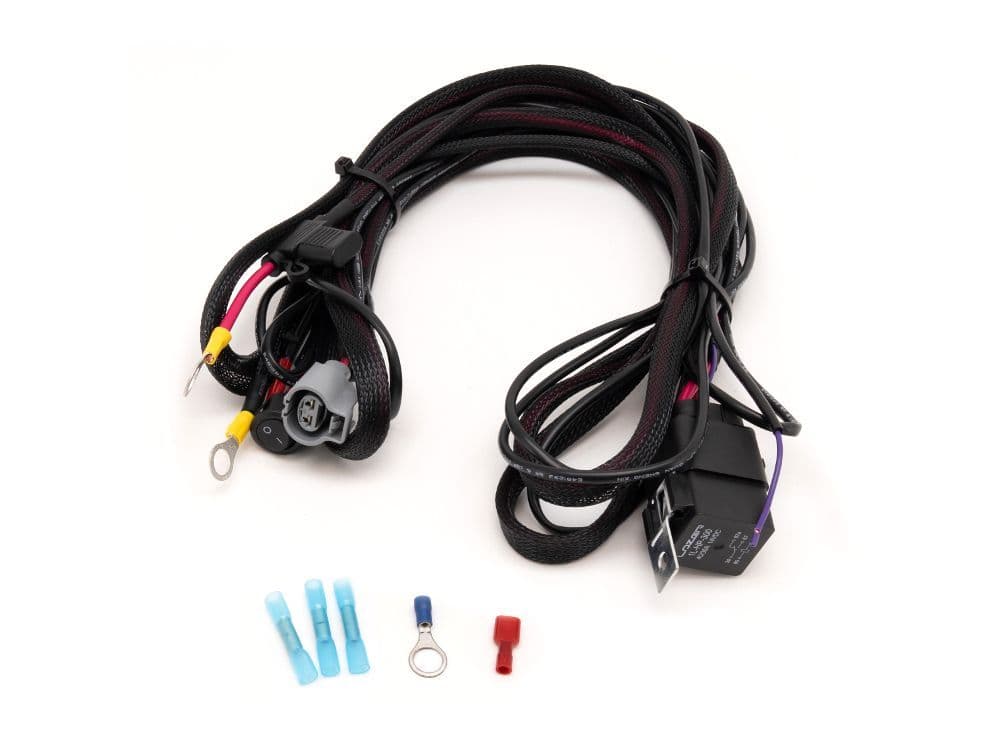

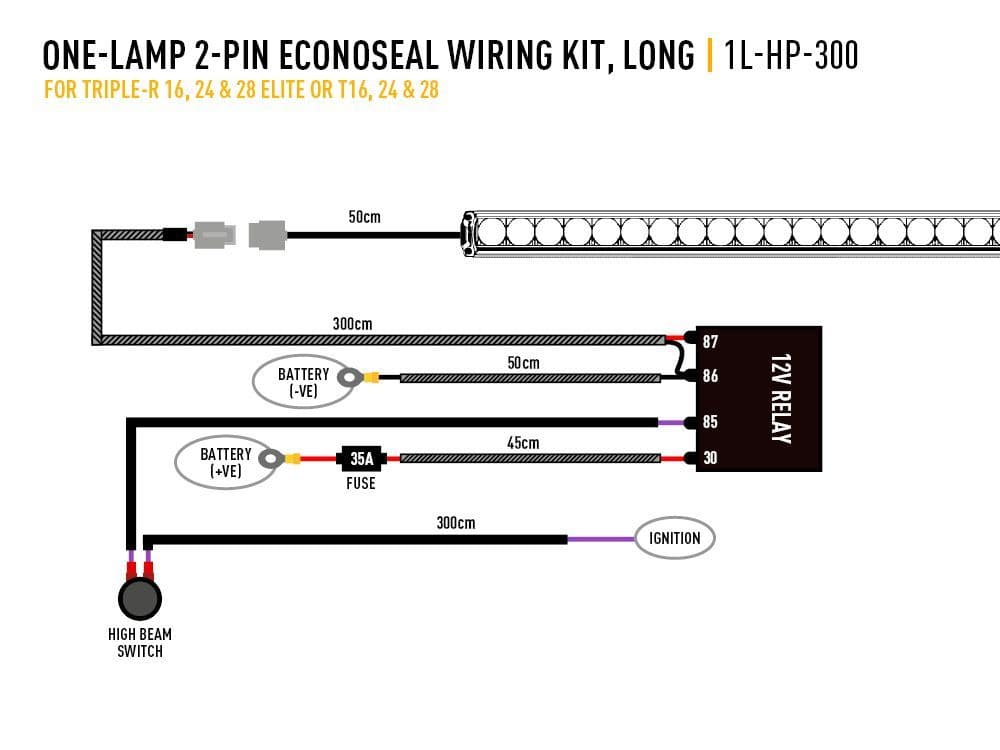

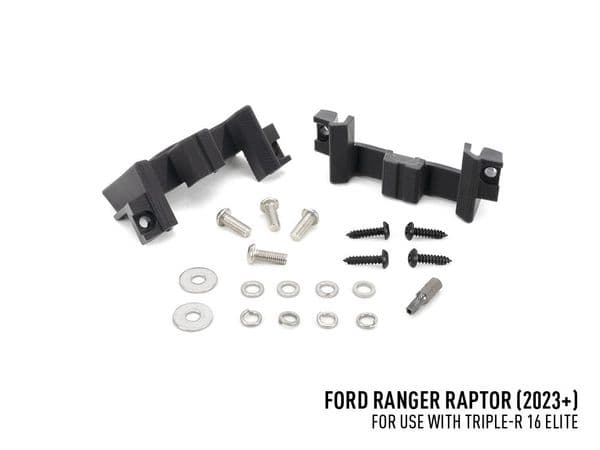

Kit also includes bespoke mounting brackets and wiring kit with switch

Cutting guides included

Brackets made from high strength, UV -stable, composite material

5-year warranty

Made in Britain

TECHNICAL SPECIFICATIONS

Technical Specifications
1x Triple-R 16 Elite
Voltage Range (DC) 10-32V
LED Life 50,000 hrs
Weight 3.2 kg
HIGH BEAM FUNCTION
Total Luminous Flux

18040 Lm
Total Driver 'FOV' Flux † 11888 Lm
Colour Temperature 5000k
Number of High Output LEDs 16
Power Consumption 208 Watts
Current Draw (at 14.4V) 14.4 Amps
CERTIFICATION
High Beam N/A
E-Mark Ref N/A
PHOTOMETRIC DATA
Horiz Beam Angle 30 Deg
0.25 lx Line 1920 metres
0.5 lx Line 1358 metres
1 lx Line 960 metres
3 lx Line 554 metres

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down.
