Ford Ranger Wildtrak (2023+) Grille kit triple-r 850

View more images

Ford Ranger Wildtrak (2023+) Grille kit triple-r 850

Information

Bespoke vehicle integration kit for Lazer LED Spotlight installation

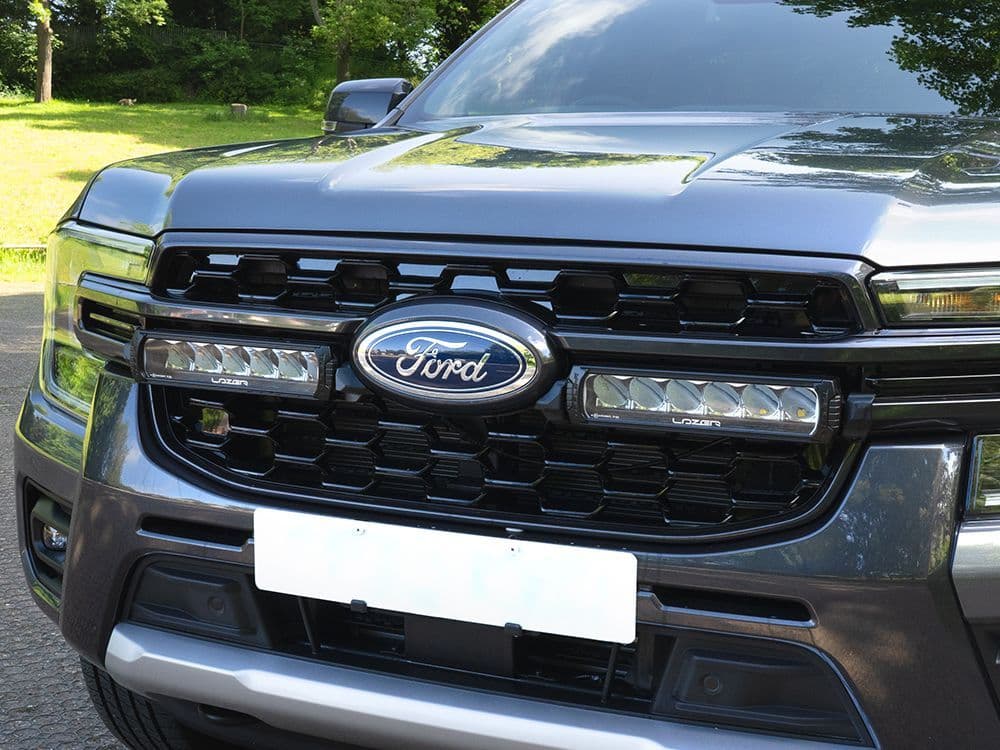

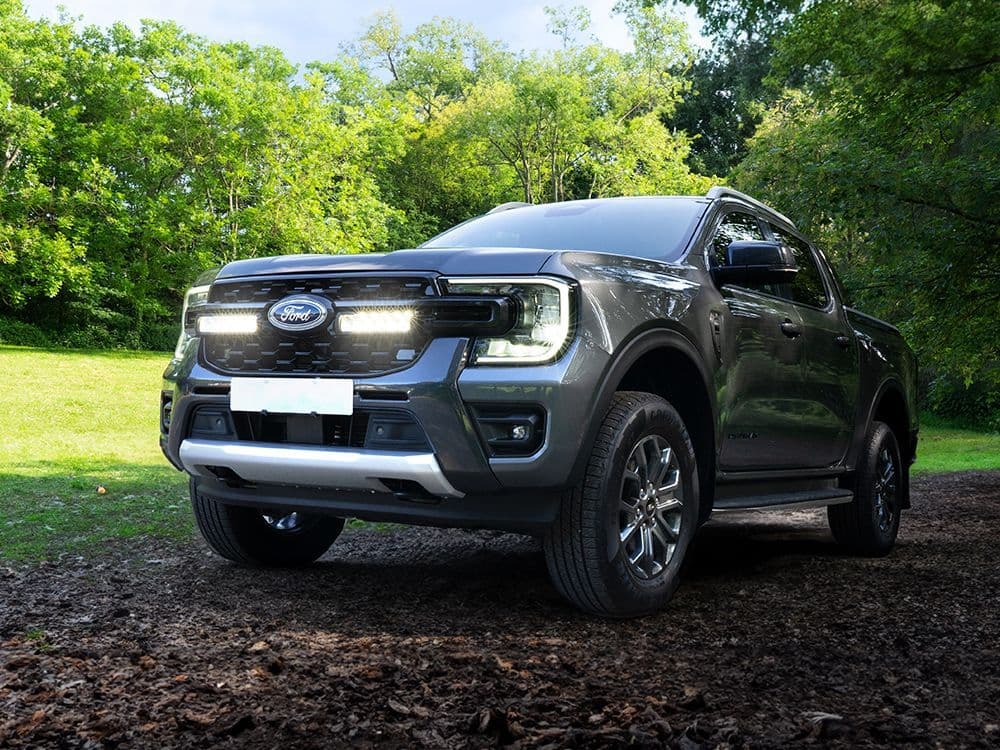

Custom fit for Ford Ranger Wildtrak (MY 2023)

Available with: Triple-R 850 High Performance LED Spotlights

Added option for integrated white and amber backlight function (white only approved for on-road use - Standard model only)

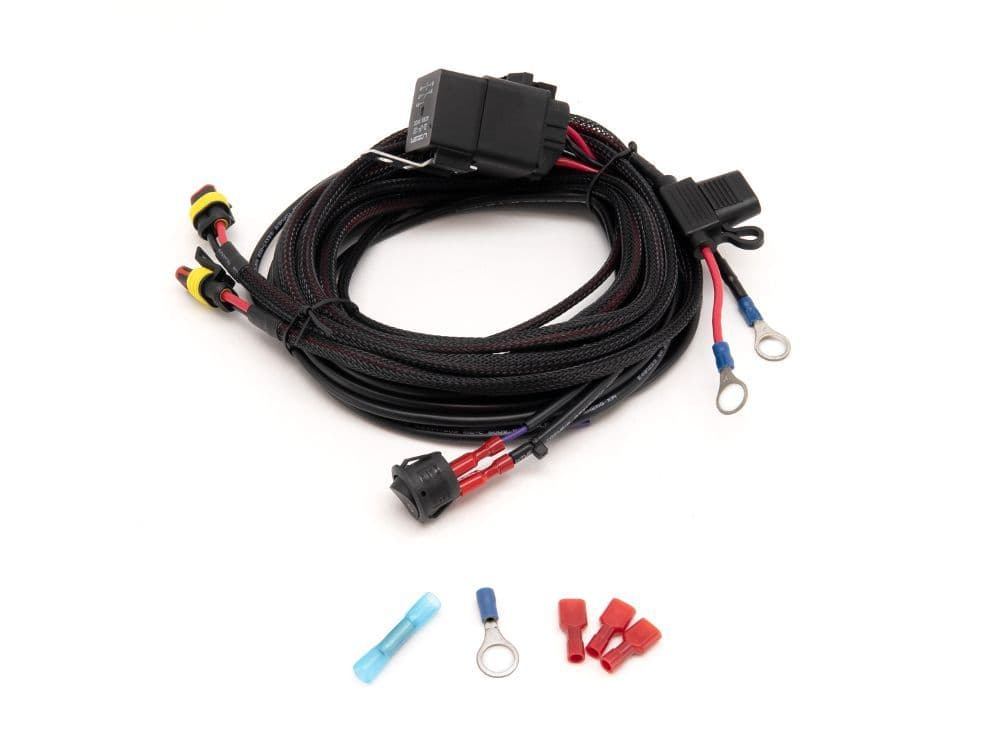

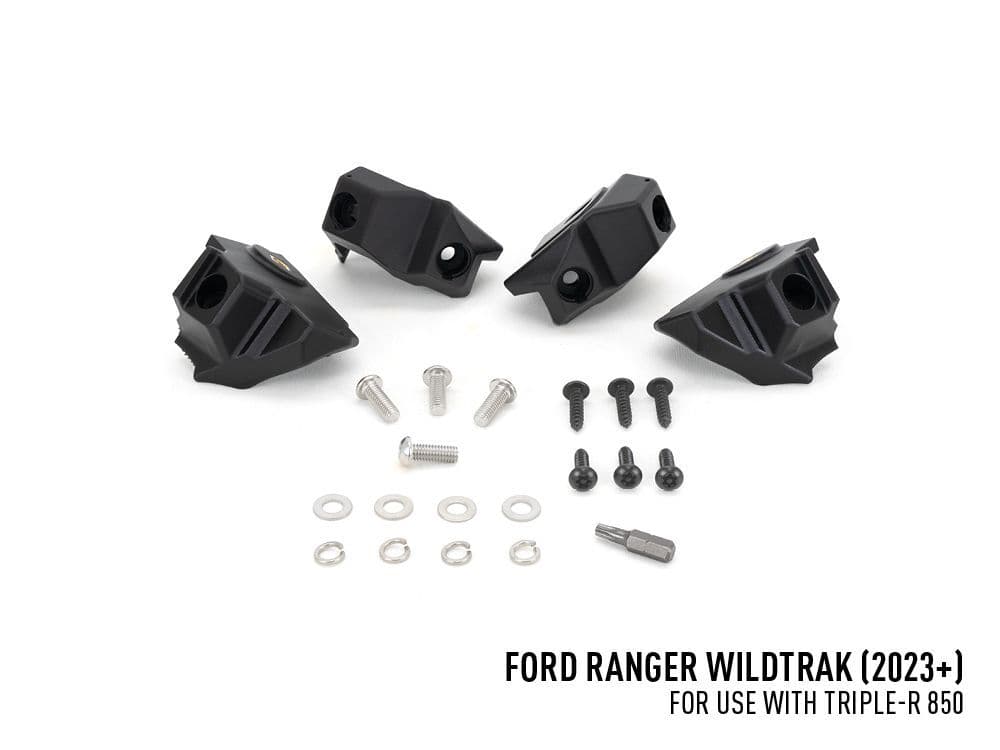

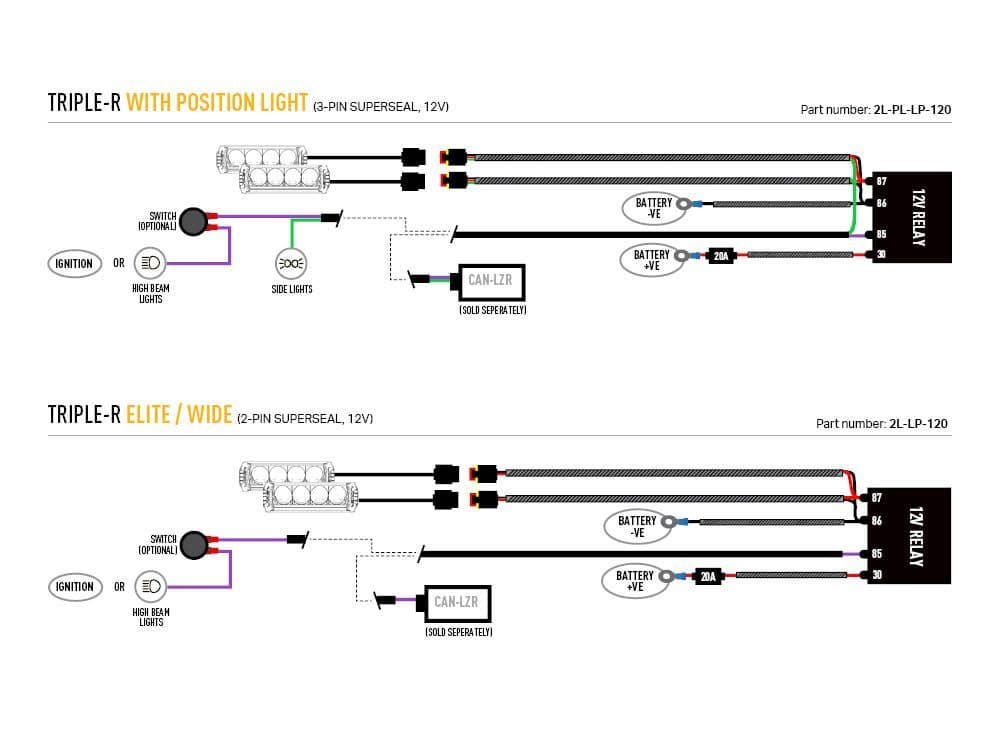

Kit also includes bespoke mounting brackets and two-lamp wiring kit

Cutting guides included

Brackets made from high strength, UV -stable, composite material

Fully road-legal

5-year warranty

Made in Britain

TECHNICAL SPECIFICATIONS

Technical Specifications

	2x Triple-R 850 Elite (E-Boost Mode)	2x Triple-R 850
Voltage Range (DC)	10-32V	10-32V
LED Life	50,000 hrs	50,000 hrs
Weight	2.6 kg	2.6 kg
HIGH BEAM FUNCTION
Total Luminous Flux	16136 Lm	13860 Lm
Total Driver 'FOV' Flux †	10634 Lm	8358 Lm
Colour Temperature	5000K	5000K
Number of High Output LEDs	2 x 6	2 x 6
Power Consumption	146 Watts	132 Watts
Current Draw (at 14.4V)	10.2 Amps	9.2 Amps
CERTIFICATION
High Beam	ECE R112	ECE R112
ECE Reference	N/A (17.5 x2 - E-Mark Mode)	45 x2
Position Light (White only)	N/A	ECE R7

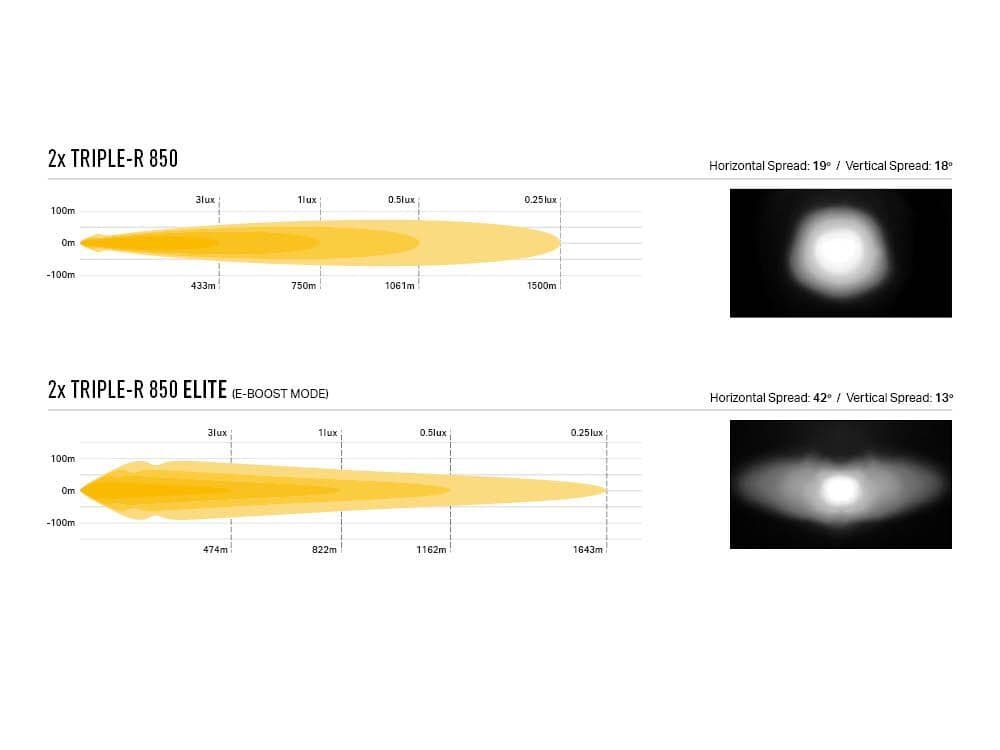

PHOTOMETRIC DATA
Horizontal Beam Angle	42°	19°
0.25 lx Line	1643m	1500m
0.5 lx Line	1162m	1061m
1 lx Line	822m	750m
3 lx Line	474m	433m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45^o left/right, and +/- 10^o up/down.
