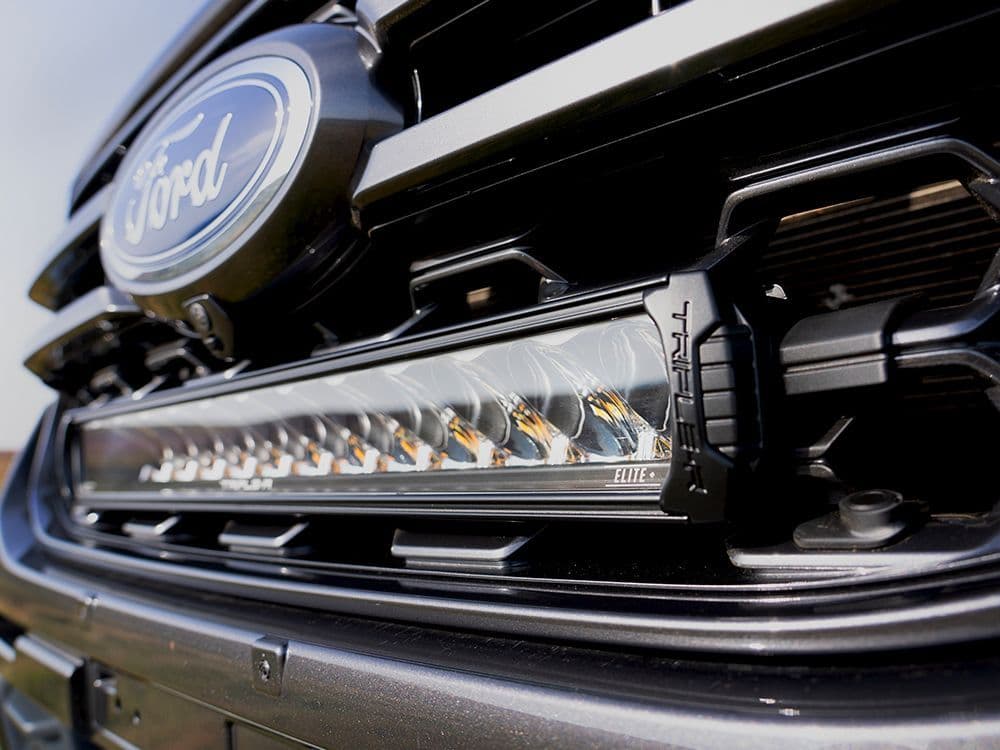

Ford Ranger Wildtrak (2023+) Triple-r 1250 grille kit

  • Ford Ranger Wildtrak (2023+) Triple-r 1250 grille kit
  • Ford Ranger Wildtrak (2023+) Triple-r 1250 grille kit
  • Ford Ranger Wildtrak (2023+) Triple-r 1250 grille kit
  • Ford Ranger Wildtrak (2023+) Triple-r 1250 grille kit
  • Ford Ranger Wildtrak (2023+) Triple-r 1250 grille kit
View more images
Ford Ranger Wildtrak (2023+) Triple-r 1250 grille kit
Ford Ranger Wildtrak (2023+) Triple-r 1250 grille kit

Ford Ranger Wildtrak (2023+) Triple-r 1250 grille kit

PRODUCT FEATURES

Bespoke mounting bracket kit for Lazer LED Lightbar installation

Custom fit for Ford Ranger Wildtrak (2023+)

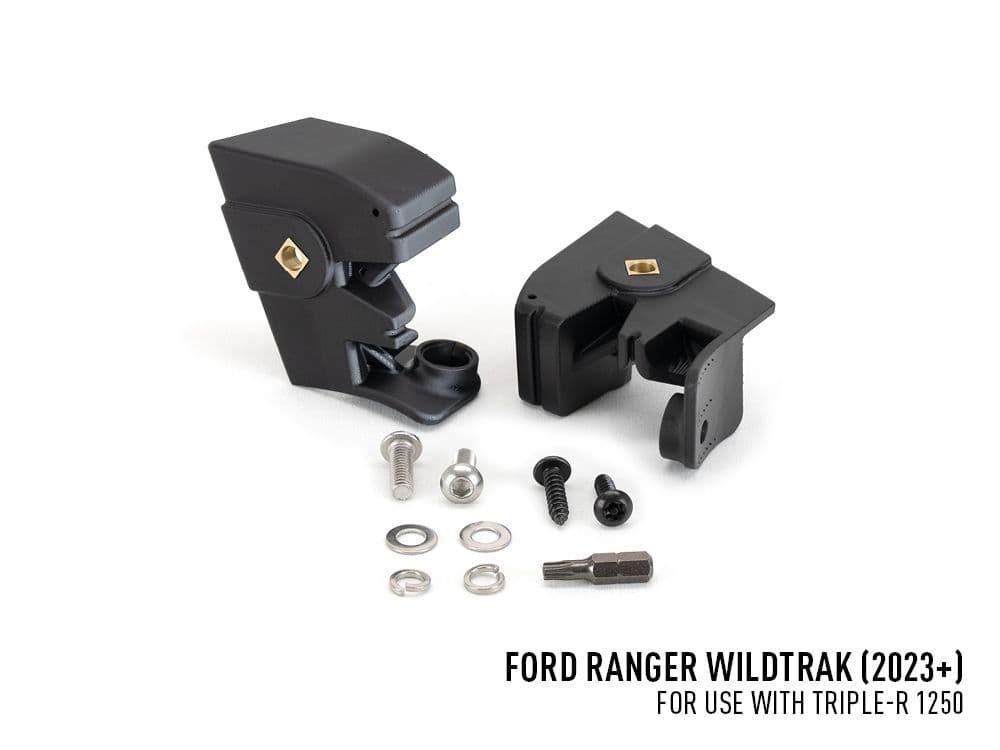

Kits include: 2x brackets, cutting guides, and fasteners

Made from high strength, UV-stable, composite material

Optimised for use with Triple-R 1250 LED Lightbar

5-year warranty

Made in Britain

TECHNICAL SPECIFICATIONS

Technical Specifications
Triple-R 1250

Triple-R 1250 Elite+
(E-Boost /
E-Mark)
Voltage Range 10-32V 10-32V
LED Life 50,000 hrs 50,000 hours
Weight 2.4 kg 2.4 kg
HIGH BEAM FUNCTION
Total Luminous Flux 13,860 Lm 12028 / 2045
Total Driver 'FOV' Flux † 8358 Lm 7464 / 1269
Colour Temperature 5000K 5000K
Number of High Output LEDs 12 24
Power Consumption 125 Watts 131 W / 19.6 W
Current Draw (at 14.4V) 8.7 Amps 9.1 A / 1.4 A
CERTIFICATION
High Beam ECE R112 ECE R149
E-Mark Ref 20 TBC
Position Light (White only) ECE R7 ECE R148

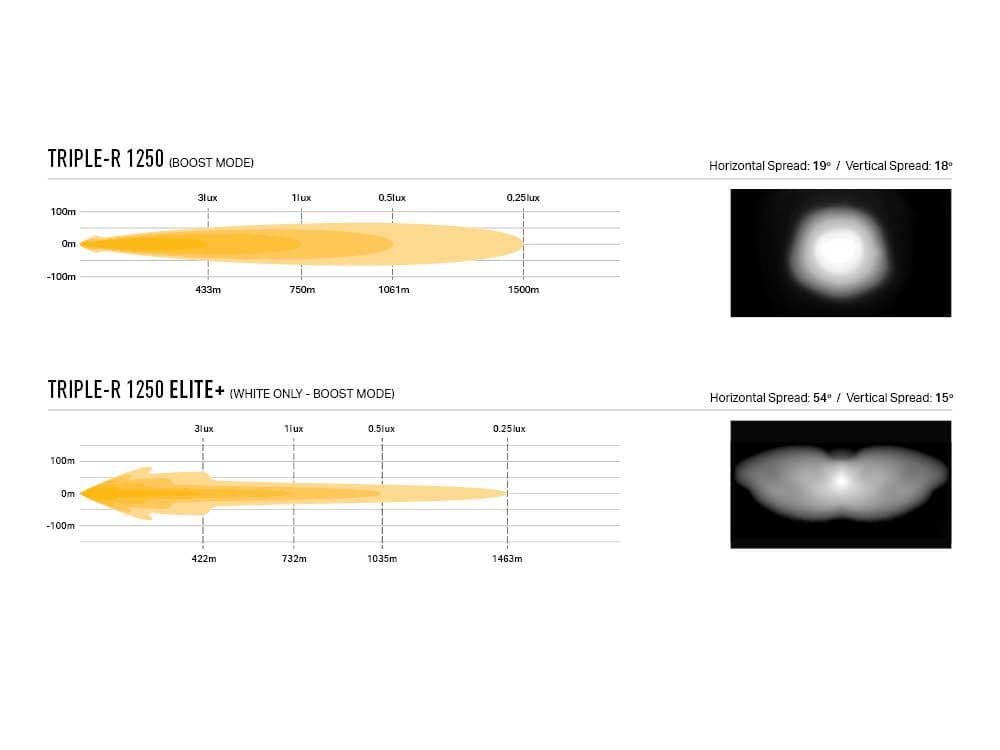

PHOTOMETRIC DATA
Horizontal Beam Angle  19o 54°
0.25 lx Line 1500m 1470m / 616m
0.5 lx Line 1061m 1039m / 436m
1 lx Line 750m 735m / 308m
3 lx Line 433m 424m / 178m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down.
