eobd diagnostic computers

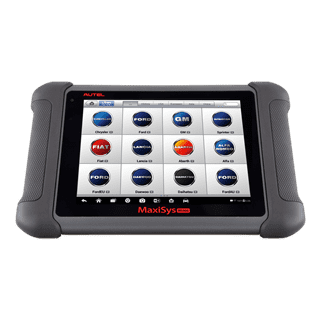

ms906 maxisys multi-manufacturer diagnostic tool

ms906 maxisys multi-manufacturer diagnostic tool

£1,614.00

The MaxiSys MS906 becomes the MS908’s ‘little brother’ and is twice as powerful than the DS708, offering a 20 second boot up. Built on the multi-tasking Android KitKat operating system and with the newest 6 core processor, it has the power to scan vehicle systems quickly.

Faster, lighter, better value and much more powerful than its competitors, the MS906 includes great features such as support for over 60 manufacturers, actuation testing, special functions, live data and some programming functions. You can also take images, send/receive emails, and web browse using its advanced Android functionality.

The MS906 has a large 8” high resolution screen, WiFi, 8 Megapixel camera, 2GB RAM and a ‘best in class’ 32GB Internal Hard Drive. You can take pictures of faulty parts for customers and email instantly. Self-powered and connecting to the car via a cable, it’s the perfect tool for the busy garage or workshop, who need the latest technology at unbeatable value.

The MS906 is supplied with free 12 months software updates, UK based telephone support and enhanced European software. It’s time for the competition to catch up again!

Videos

Features

  • 70+ Manufacturers
  • Bluetooth Connectivity
  • 12 Months UK Support
  • 12 Months UK Warranty
  • Enhanced European Software
  • All Modules - Chassis, Powertrain, Body etc

  • All Modules - Chassis, Powertrain, Body etc
  • Read and Clear Codes
  • Live Data/Record/Playback
  • AutoVIN Technology
  • SAS Functionality
  • ABS Functionality
  • DPF Functionality
  • EPB Functionality
  • Climate Control Functionality
  • Oil Service Functionality
  • Instrument Cluster Functionality
  • Steering Angle Sensors
  • Service Mileage/Interval Reset
  • Battery Registration/Reset
  • Adaption Testing
  • Activation Testing
  • Pre OBD Connecters Included

Specifications

Display

Size:8"

Resolution:1024x768P

Type:LED

Touch Screen

Software

Software Updates (1 Year Included)

Hardware

Operating System:Android™ 4.4.2, KitKat

Boot Time:20 secs

Processor:Samsung Exynos 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)

Memory:2 GB RAM & 32 GB ROM

Housing:Rubberized outer protection and rugged internal housing

Power

Battery

Size:3.7V/5000mAh

Type:lithium-polymer

Usage from Charge:5.5 Hours

Voltage:DC/12 V (9-35 V)

Power Consumption:5W

Operating Temperature:-10 to 55°C (14 to 131°F)

Storage Temperature:-20 to 70°C (-4 to 158°F)

Storage

Built-in Hardrive

Capacity:32gb

Type:Solid State

Connectivity

WiFi

USB 3.0

Rear Camera

Megapixels:8.0

Flashlight

Autofocus

Accessories

Main Unit

1 x Main Unit

Main Cable

1 x Main Cable

AC/DC Adaptor (12v)

1 x AC/DC Adaptor (12v)

Mini USB Cable

1 x Mini USB Cable

Mini USB Cable

1 x Mini USB Cable

Cigarette Lighter

1 x Cigarette Lighter

Light Fuse

2 x Light Fuse

Honda-3

1 x Honda-3

Nissan-14

1 x Nissan-14

Mitsubishi/Hyundai - 12+14

1 x Mitsubishi/Hyundai - 12+14

Kia-20

1 x Kia-20

BMW-20

1 x BMW-20

VW/Audi 2+2

1 x VW/Audi 2+2

GM/Daewoo-12

1 x GM/Daewoo-12

Benz-38

1 x Benz-38

Benz-14

1 x Benz-14

User Manual

1 x User Manual

Quick Reference Guide

1 x Quick Reference Guide

Packing List

1 x Packing List

Soft Cloth

1 x Soft Cloth

Carrying Case

1 x Carrying Case
